SPHERA EVO 2.0 INVISIBLE

Built-in air-to-water refrigerant-split heat pump

SQKN-YEE 1 IC + MiSAN-YEE 1 S 2.1÷5.1

SPHERA EVO 2.0 INVISIBLE: Space-saving yet efficient setup

Space-saving yet efficient setup

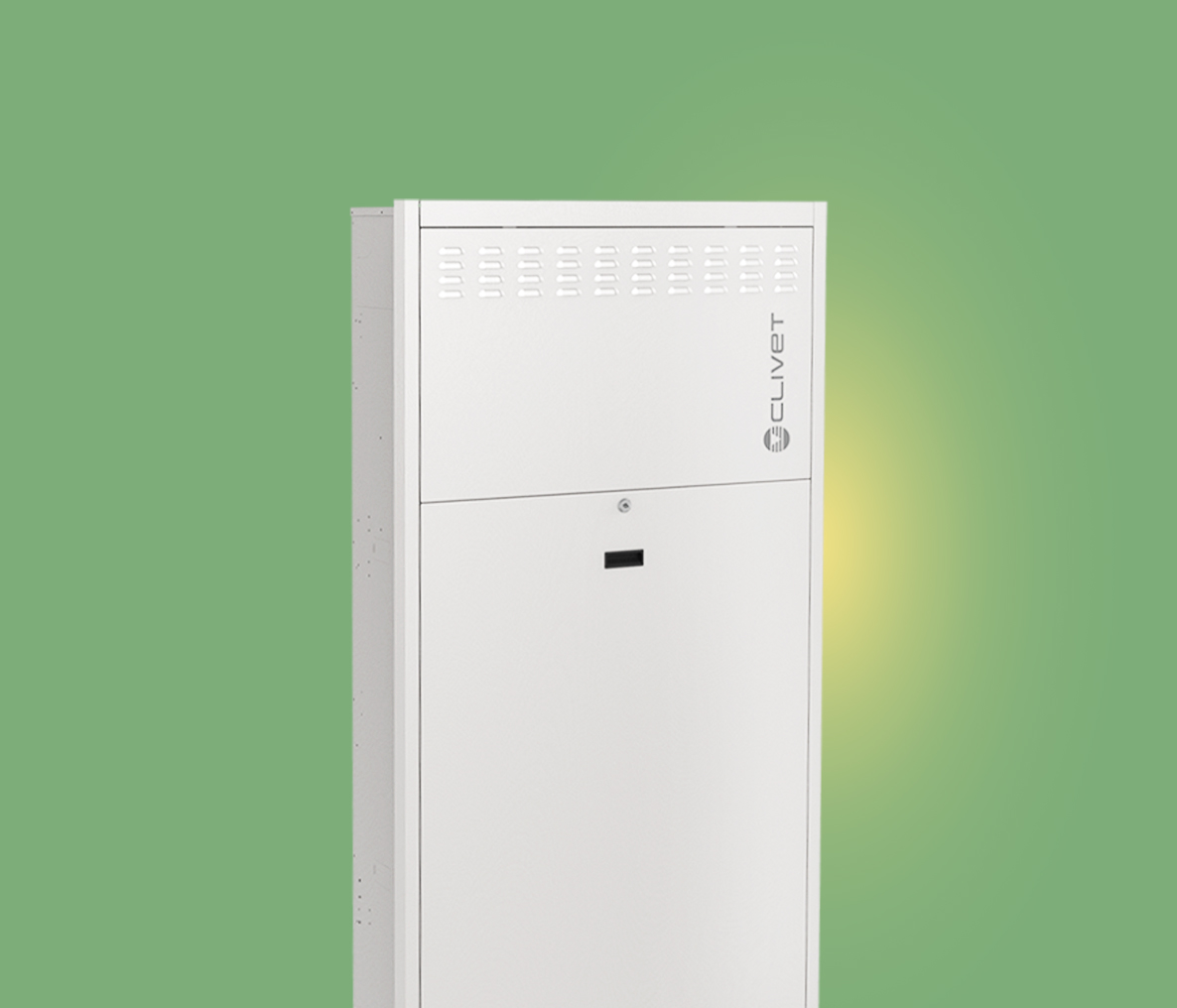

Comfort doesn't need space. Indoor unit completely built into the wall for unlimited furnishing options. Heating, cooling and domestic hot water production components find their place in the cabinet.









SPHERA EVO 2.0 INVISIBLE by Clivet: many accessories, same space
Many accessories, same space

All accessories you may need at hand without taking up too much space: from hybrid boiler to thermal solar for panel connection.

Your comfort is in your hands

Manage your ideal temperature instantly on your smartphone, even while relaxing on your sofa.

graphic image: green and yellow category aura, with phone displaying hid-tconnect application

The hot water you need

You decide the hot water volume that best suits your needs. Storage tanks up to 300 liters to meet any requirement.

Free Cooling / Heating

Free Cooling / Heating

Provides Cooling / Heating for free (on certain conditions)
Silent

Silent

For more silent operation
Contemporaneity

Contemporaneity

Produces Heating and Domestic Hot Water at the same time
Integrated DHW tank

Integrated DHW tank

Compromises a tank for the storage of Domestic Hot Water (DHW)
Free Cooling / Heating

Free Cooling / Heating

Provides Cooling / Heating for free (on certain conditions)
Silent

Silent

For more silent operation
Contemporaneity

Contemporaneity

Produces Heating and Domestic Hot Water at the same time
Integrated DHW tank

Integrated DHW tank

Compromises a tank for the storage of Domestic Hot Water (DHW)

Technical Synthesis

Dimensions Indoor Unit (Length x Height x Depth)

From 950x2200x360 mm

Dimensions Indoor Unit (Length x Height x Depth)

From 920x712x400 mm

Heating Efficiency Class (Medium Climate)

A+++ (Water 35 °C)
A++ (Water 55 °C)

Consecutive showers available

from 3 to 4

Home surface range

from 42 to 110 m²

Sound level indoor unit

from 41 dB(A) (like a refrigerator)

Complete your system

Make your heat pump more efficient: optimise performance and energy consumption for eco-sustainable comfort.

Looking for Support?
Contact us: a Clivet consultant will answer your queries.

Explore our alternative solutions

SPHERA EVO 2.0 SQKN-YEE 1 TC + MiSAN-YEE 1 S 2.1÷8.1

SPHERA EVO 2.0

Air-to-water Refrigerant-split heat pump with DHW tank

SQKN-YEE 1 TC + MiSAN-YEE 1 S 2.1÷8.1

EDGE F: air-to-water packaged unit heat pump

EDGE F

Air-to-water packaged unit heat pump

WiSAN-PME 1 S 2.1÷8.1

EDGE EVO 2.0 - EXC WiSAN-YME 1 S 2.1÷14.1

EDGE EVO 2.0 - EXC

Air-to-water packaged unit heat pump

WiSAN-YME 1 S 2.1÷14.1

SPHERA EVO 2.0 BOX SQKN-YEE 1 BC + MiSAN-YEE 1 S 2.1÷8.1

SPHERA EVO 2.0 BOX

Wall-mounted air-to-water Refrigerant-split heat pump

SQKN-YEE 1 BC + MiSAN-YEE 1 S 2.1÷8.1

Distances to be maintained 500mm front internal unit
Optimised spaces

It is essential to comply with the distances indicated to ensure correct operation of the unit

Technical Specifications

Size

Dimensions Indoor Unit (Length x Height x Depth)

From 950x2200x360 mm

Dimensions Indoor Unit (Length x Height x Depth)

From 920x712x400 mm

Operating range (outside air)

Operating range in Heating

-25 / 35 °C

Operating range in Cooling

-5 / 43 °C

Seasonal Efficiency

Heating Efficiency Class (Medium Climate)

A+++ (Water 35 °C) A++ (Water 55 °C)

Domestic Hot Water Production

A+ with Withdrawal profle L

Performance

Heating (Outdoor air 7 °C / water 35 °C)

from 4.32 kW a 10.1 kW: COP up to 5.42

Heating (Outdoor air 7 °C / water 35 °C)

from 4.17 kW a 8.20 kW: COP up to 3.23

Cooling (Outdoor air 35 °C / water 18 °C)

from 4.55 kW to 102 kW: EER up to 6.08

Water mixed at 40 °C

Up to 188 lt

Dimension

Consecutive showers available

from 3 to 4

Home surface range

from 42 to 110 m²

Sound power

Sound level indoor unit

from 41 dB(A) (like a refrigerator)

Sound level of outdoor unit

from 50 dB(A) (like moderate rain)
Possible combinations
Full electric single-zone system: Heating / Cooling / DHW
  1. outdoor unit
  2. indoor unit
  3. heating/cooling zone
  4. bypass*
  5. additional DHW tank
  6. DHW recirculation pump*
  7. SwitchConnect Wi-Fi receiver (optional)
  8. HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Full electric single-zone system: Heating / Cooling / DHW
Possible combinations
Hybrid single-area system with thermal solar: Heating / Cooling / DHW
  1. outdoor unit
  2. indoor unit
  3. boiler with instantaneous DHW (Hybrid version)
  4. heating/cooling zone
  5. bypass*
  6. DHW recirculation pump (optional)
  7. kit di collegamento solare (opzionale)
  8. ELFOSun3 thermal solar collector (optional)
  9. SwitchConnect Wi-Fi receiver (optional)
  10. HID-TConnect2 Wi-Fi chronothermostat (optional)

Note:
flue to be fitted on the side or back

Hybrid single-area system with thermal solar: Heating / Cooling / DHW
Possible combinations
Full electric two-zone system: Heating / Cooling / DHW
  1. outdoor unit
  2. indoor unit
  3. heating area
  4. cooling zone
  5. system inertial storage (optional)
  6. bypass*
  7. kit for managing 2 areas (optional)
  8. DHW recirculation pump (optional)
  9. SwitchConnect Wi-Fi receiver (optional)
  10. HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Full electric two-zone system: Heating / Cooling / DHW
Possible combinations
Full electric two-zone system with additional DHW boiler: Heating / Cooling / DHW
  1. outdoor unit
  2. indoor unit
  3. mixed heating/cooling zone
  4. direct heating/cooling zone
  5. system inertial storage (optional)
  6. bypass*
  7. kit for managing 2 areas (optional)
  8. additional DHW tank (optional)
  9. DHW recirculation pump*
  10. SwitchConnect Wi-Fi receiver (optional)
  11. HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Full electric two-zone system with additional DHW boiler: Heating / Cooling / DHW
Possible combinations
Full electric single-area system with thermal solar: Heating / Cooling / DHW
  1. outdoor unit
  2. indoor unit
  3. heating/cooling zone
  4. system inertial storage (optional)
  5. bypass*
  6. DHW recirculation pump (optional)
  7. kit di collegamento solare (opzionale)
  8. ELFOSun3 thermal solar collector (optional)
  9. SwitchConnect Wi-Fi receiver (optional)
  10. HID-TConnect2 Wi-Fi chronothermostat (optional)

*from external supply

Full electric single-area system with thermal solar: Heating / Cooling / DHW

System elements

ELFOSUN3: flat-plate solar thermal collector for combination with heating and domestic hot water production systems

ELFOSUN3

Flat-plate solar thermal collector for combination with heating and domestic hot water production systems

F-L / F-XL / FH-XL

HID-TCONNECT2: CSmart Wi-Fi thermostat makes it possible to monitor your indoor climate via Clivet Home Connect App

HID-TCONNECT

Chronothermostat with temperature control and management via App /Voice control

AQUA PLUS: SWAN-2 190-300

AQUA PLUS

Packaged monoblock heat pump for domestic hot water production

SWAN-2 190-300

SPHERA EVO 2.0 INVISIBLE: SQKN-YEE 1 IC + MiSAN-YEE 1 S 2.1÷5.1

SPHERA EVO 2.0 INVISIBLE

Built-in air-to-water refrigerant-split heat pump

SQKN-YEE 1 IC + MiSAN-YEE 1 S 2.1÷5.1
